14. Equipment and Screen Map

The functional labels below were physically installed and officially adopted on August 12, 2026. Use these names for current operations. Former C/M labels are retained only as historical references for older documentation and photographs.

Installed functional label Legacy label (historical reference) Purpose
Lighting PC C1 ONYX lighting control
Control/Streaming PC C2 ATEM control, Companion, and BoxCast
OBS PC C3 OBS and broadcast effects
Lighting Monitor M1 ONYX display
Companion/BoxCast Monitor M2a Companion control and stream monitoring
ATEM Control Monitor M2b ATEM Software Control
Camera Multiview M3a Cameras, preview, and program
Program View M3b Active program picture
OBS Control M3c OBS display and control

Physical equipment references

OBS PC (formerly Computer C3)

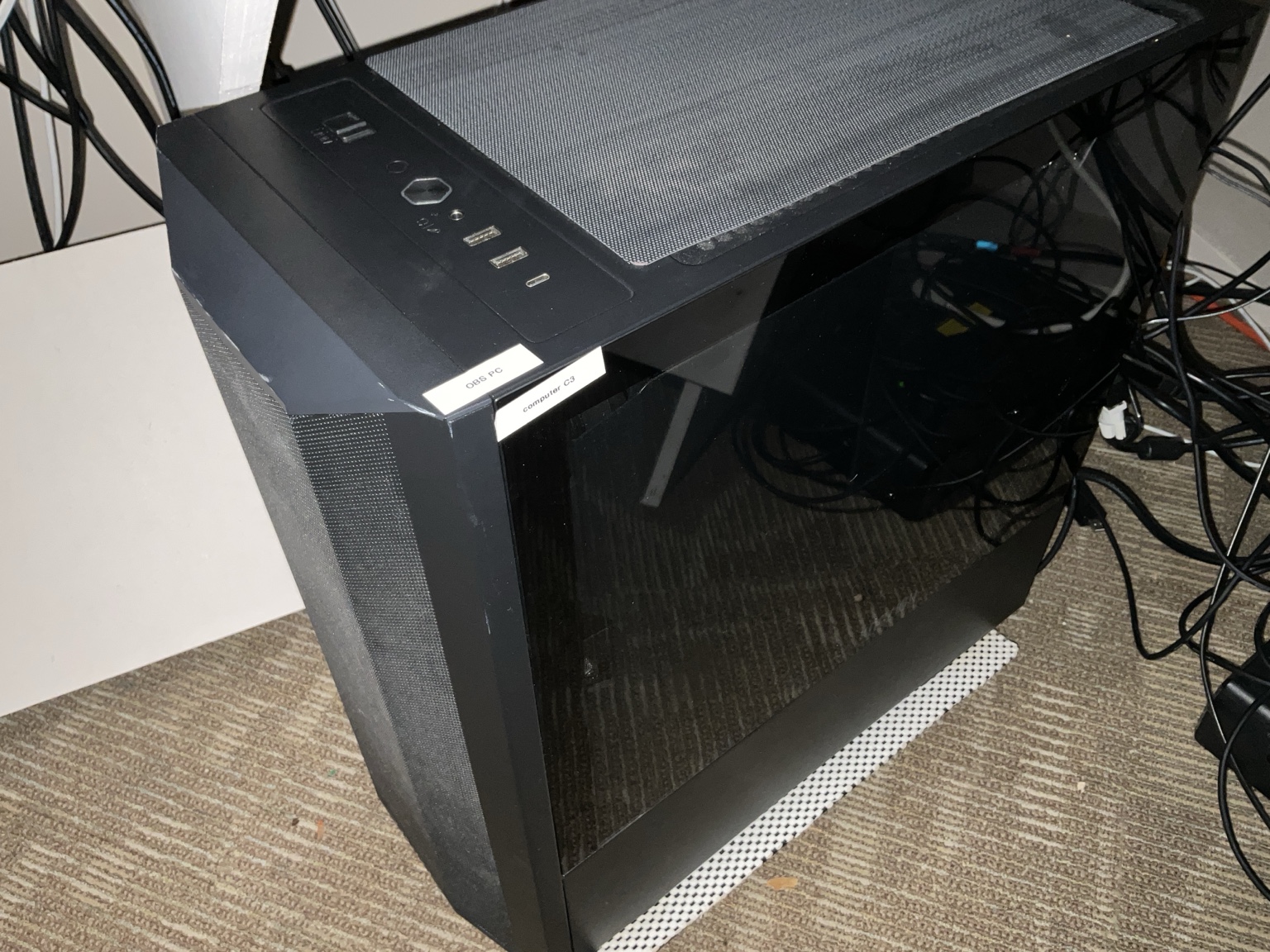

OBS PC (formerly Computer C3). This computer runs OBS and the broadcast-effects workflow.

Control/Streaming PC — Dell No. 1

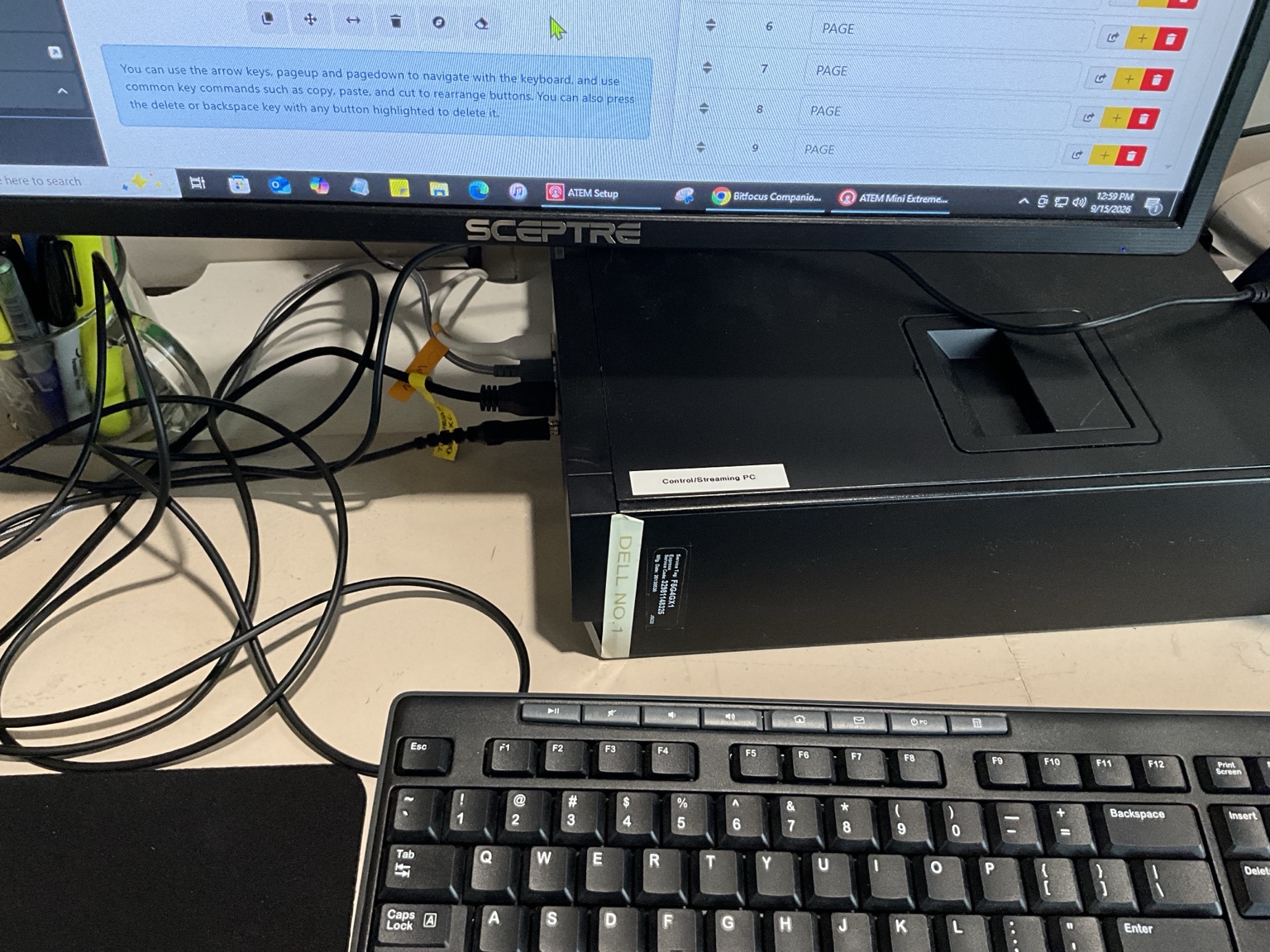

Control/Streaming PC — Dell No. 1. This computer is used for ATEM control, Companion, and stream-related functions.

Sony RM-IP10 camera controller

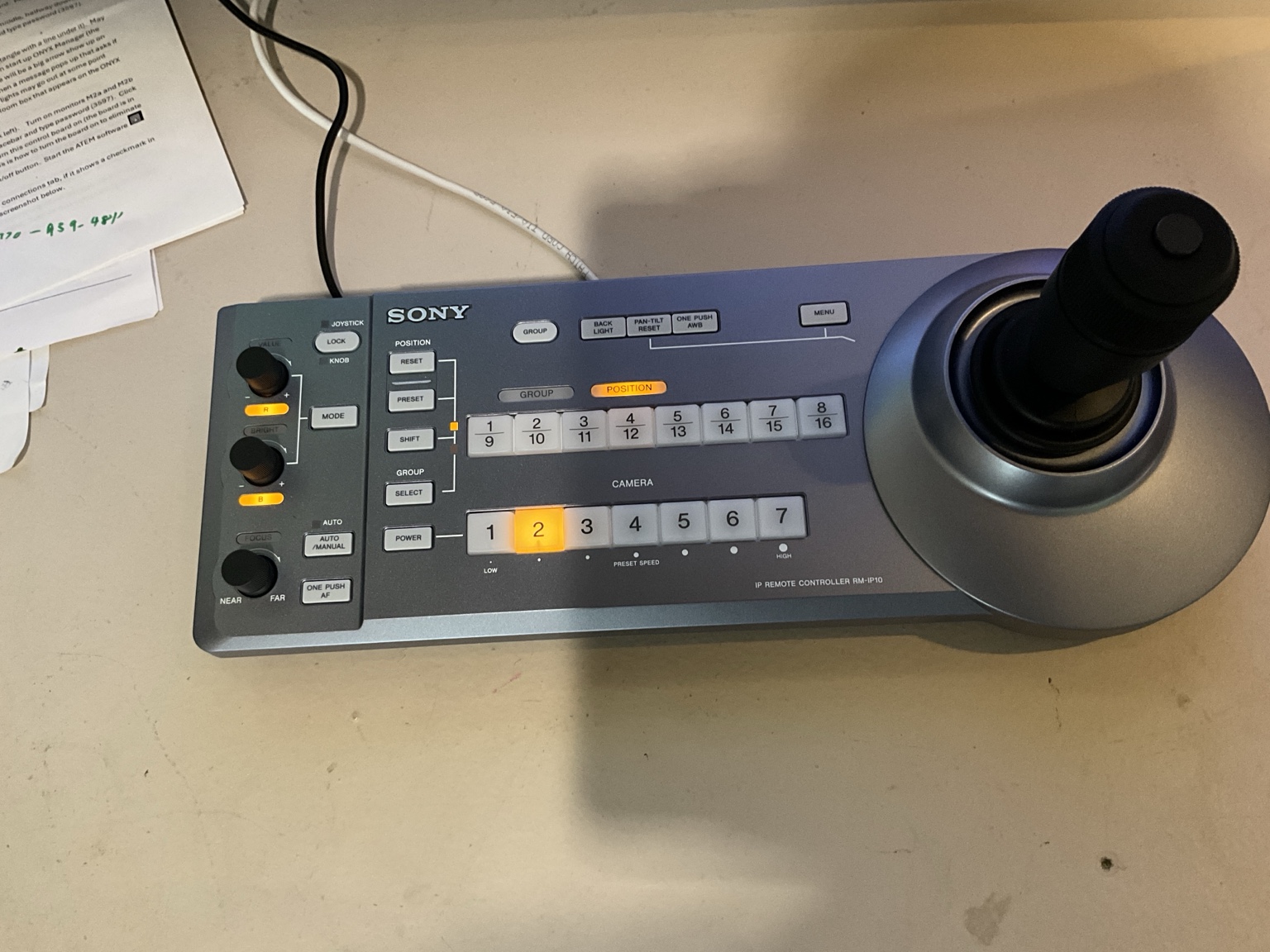

Sony RM-IP10 PTZ camera controller. The joystick moves the selected camera, while the numbered buttons and preset controls select cameras and stored positions.

Sony RM-IP10 rear connections

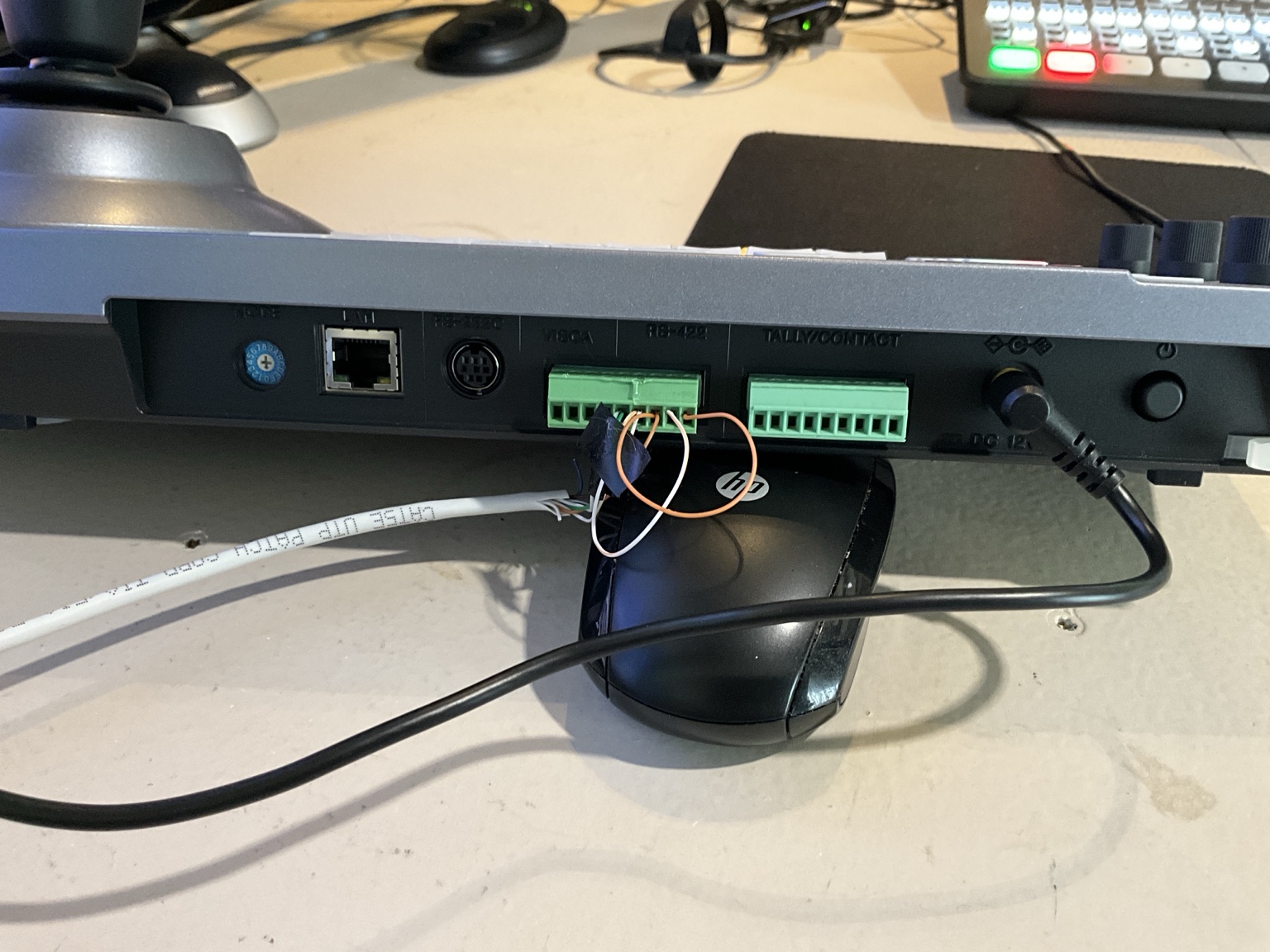

Rear of the Sony RM-IP10 controller, showing its network, serial/control, tally/contact, and power connections.

Booth audio hardware

Shure BLX4 wireless receiver

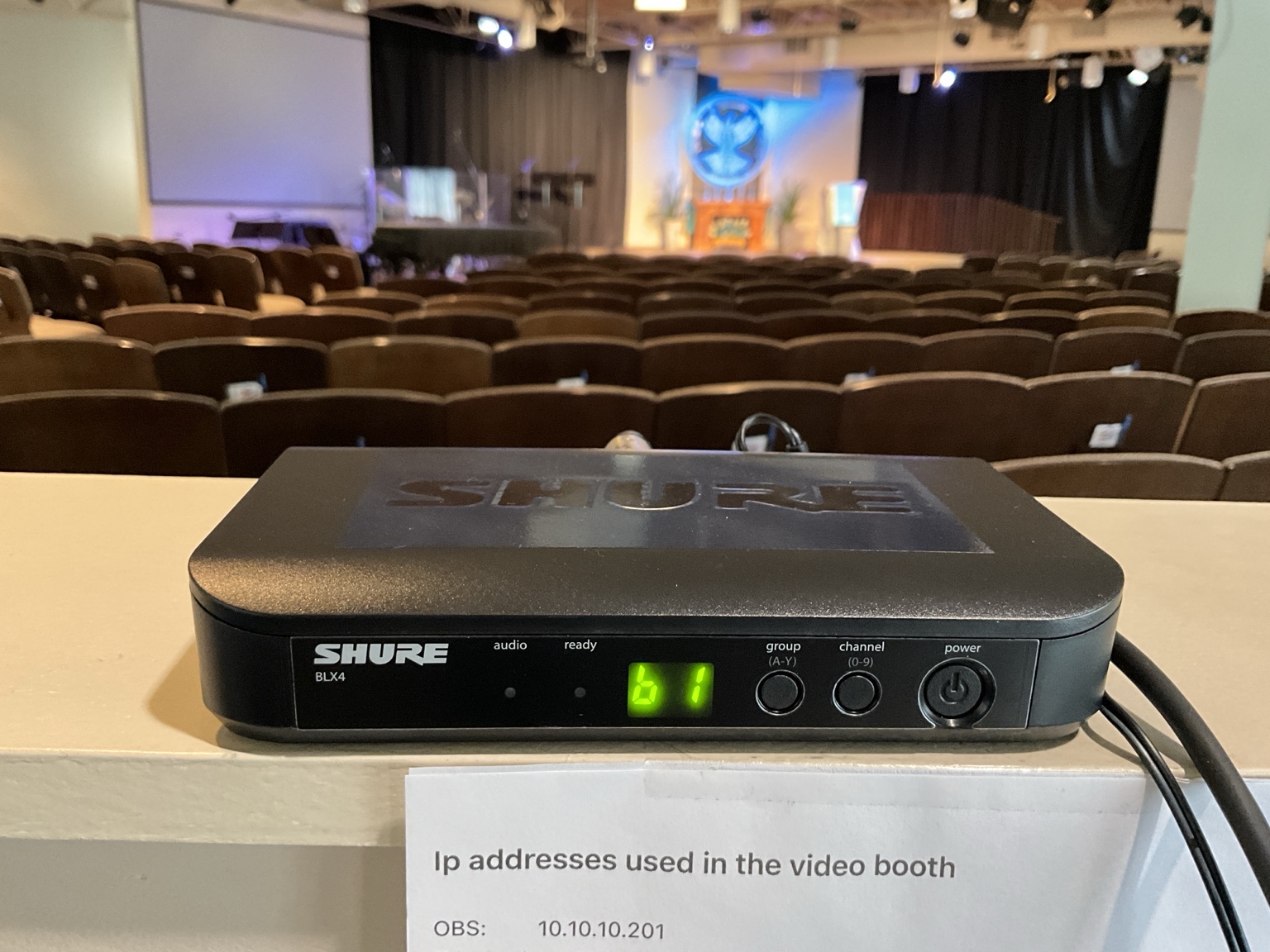

Shure BLX4 wireless receiver located in the video booth.

Shure BLX4 rear connections

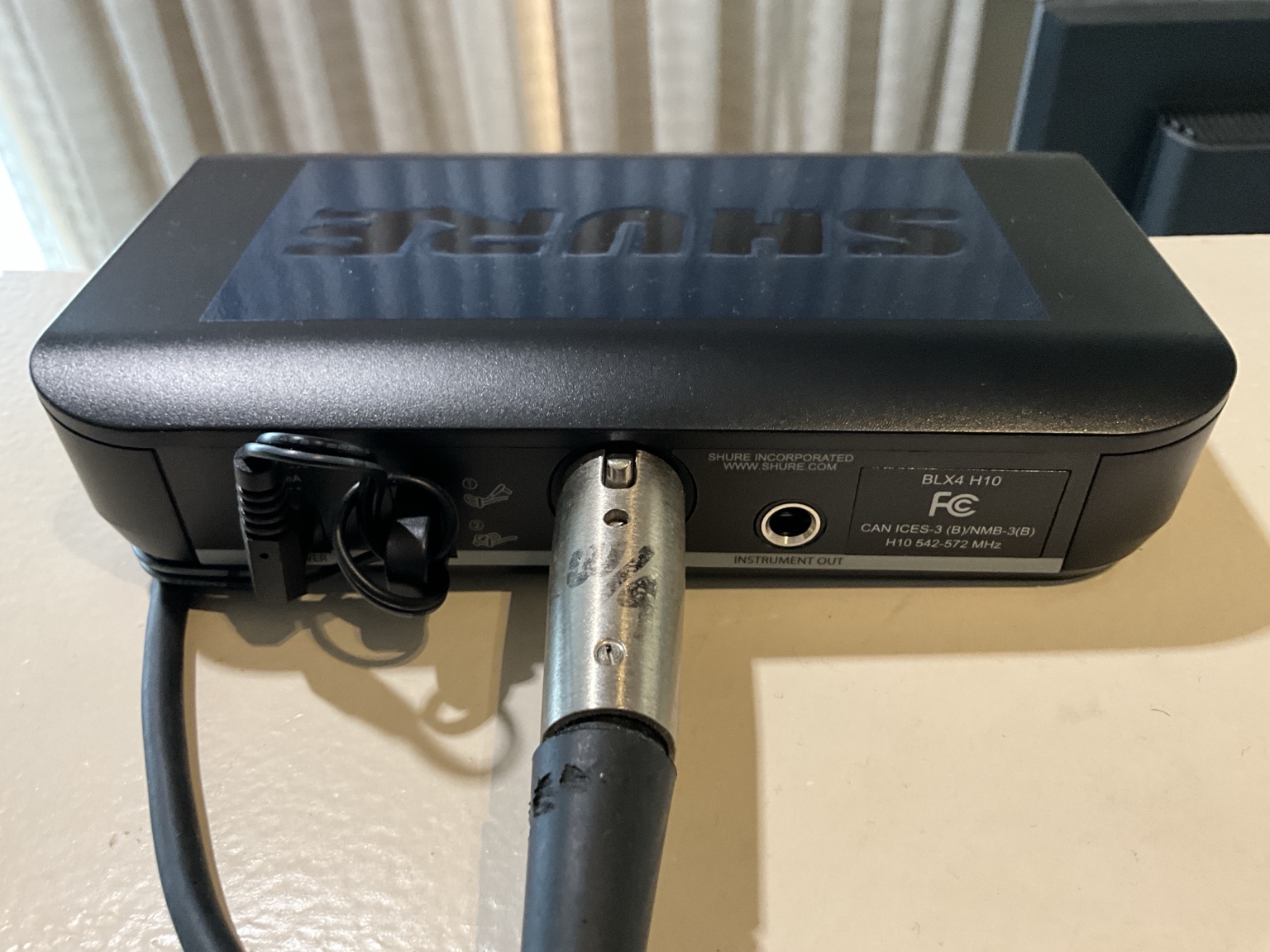

Rear connections of the Shure BLX4 receiver.

Rodywell R800 audio unit

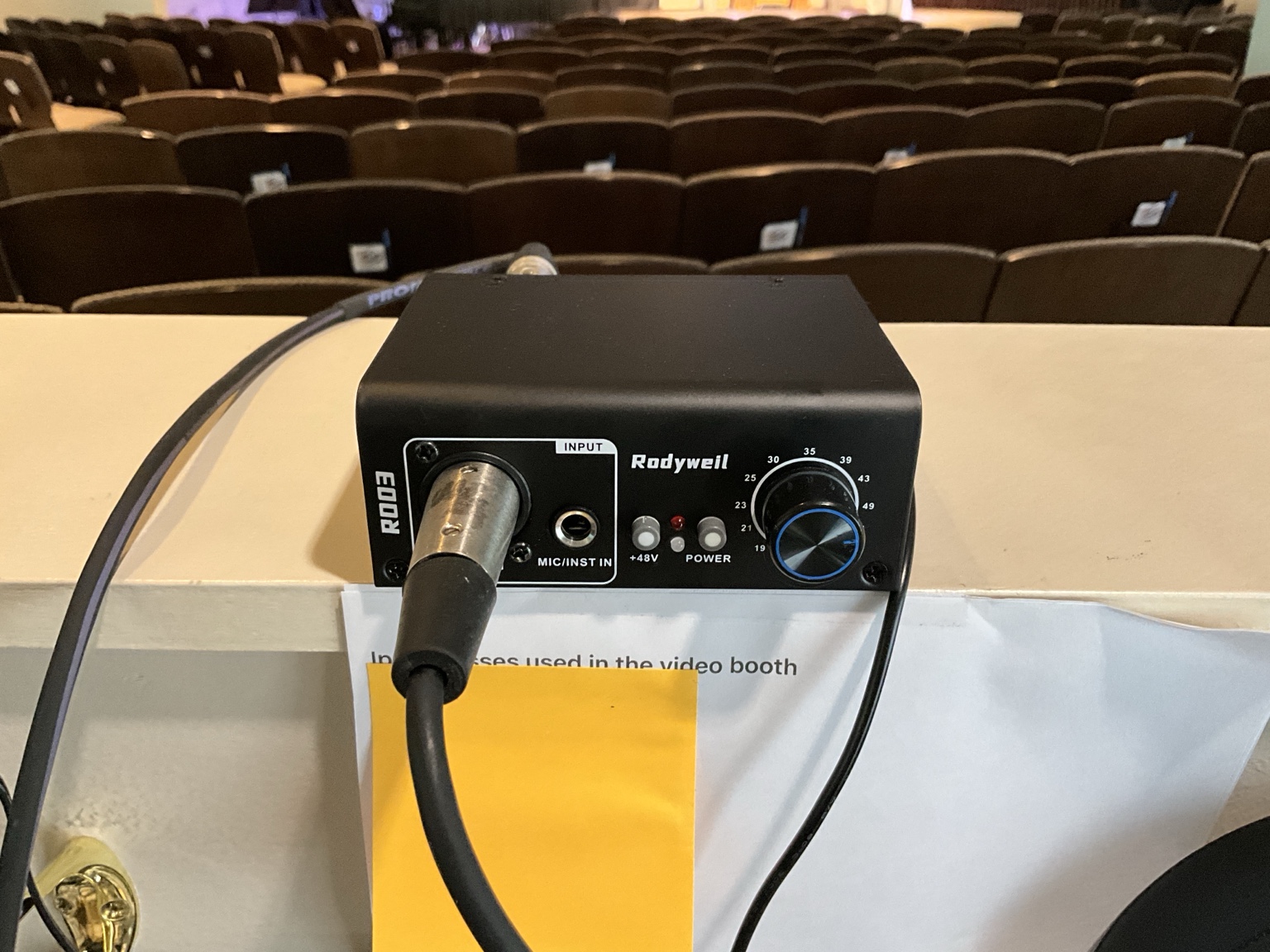

Rodywell R800 audio unit showing its microphone/instrument input, level control, power control, and +48 V control.

Rodywell R800 rear connections

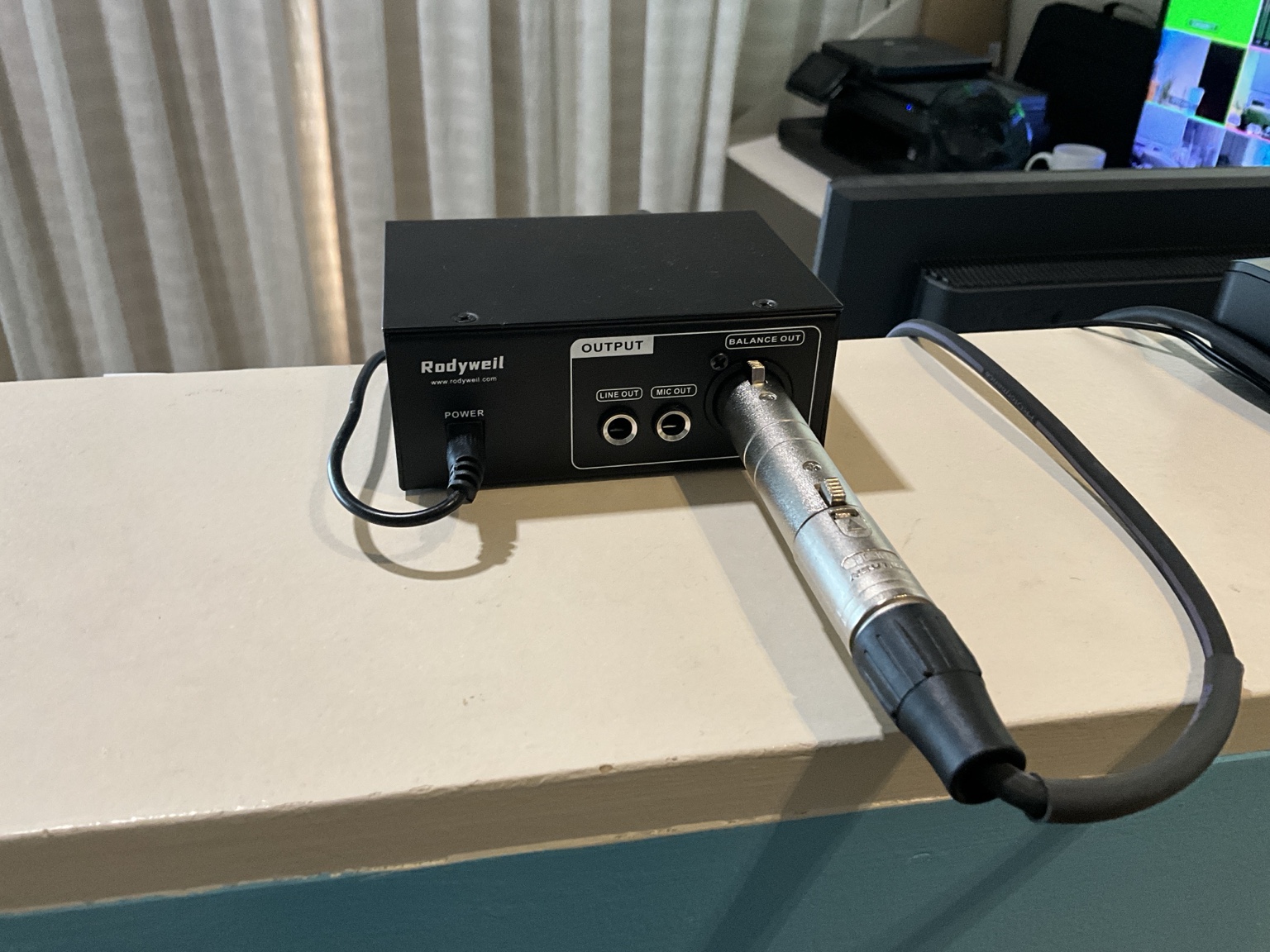

Rear of the Rodywell R800 showing its available audio outputs.

Namaste broadcast microphone

The Shure BLX4 wireless receiver and Rodywell R800 audio unit provide a dedicated microphone path used during the Namaste ceremony. This allows people in the sanctuary to speak directly to the online audience.

Signal path: Shure wireless microphone → Shure BLX4 receiver → Rodywell R800 → ATEM Mini Extreme ISO Mic 2 → broadcast.

This microphone is broadcast only. It completely bypasses the M32 and is not heard through the sanctuary/house sound system.

Troubleshooting

If the Namaste microphone cannot be heard on the broadcast, do not troubleshoot the M32. Check the Shure wireless microphone and receiver, the Rodywell R800, their connecting cables, and the ATEM Mic 2 input.

Other major equipment includes:

  • ATEM Mini Extreme ISO
  • Backup ATEM Mini Pro
  • Elgato Stream Deck
  • Sony PTZ controller
  • VocoPro broadcast microphones
  • Lightronics console
  • NX DMX interface
  • Panasonic and Sony headphones
  • Four UPS units
  • Techole HDMI splitter
