6. OBS¶

OBS provides effects, graphics, lower thirds, picture-in-picture arrangements, and other broadcast processing.

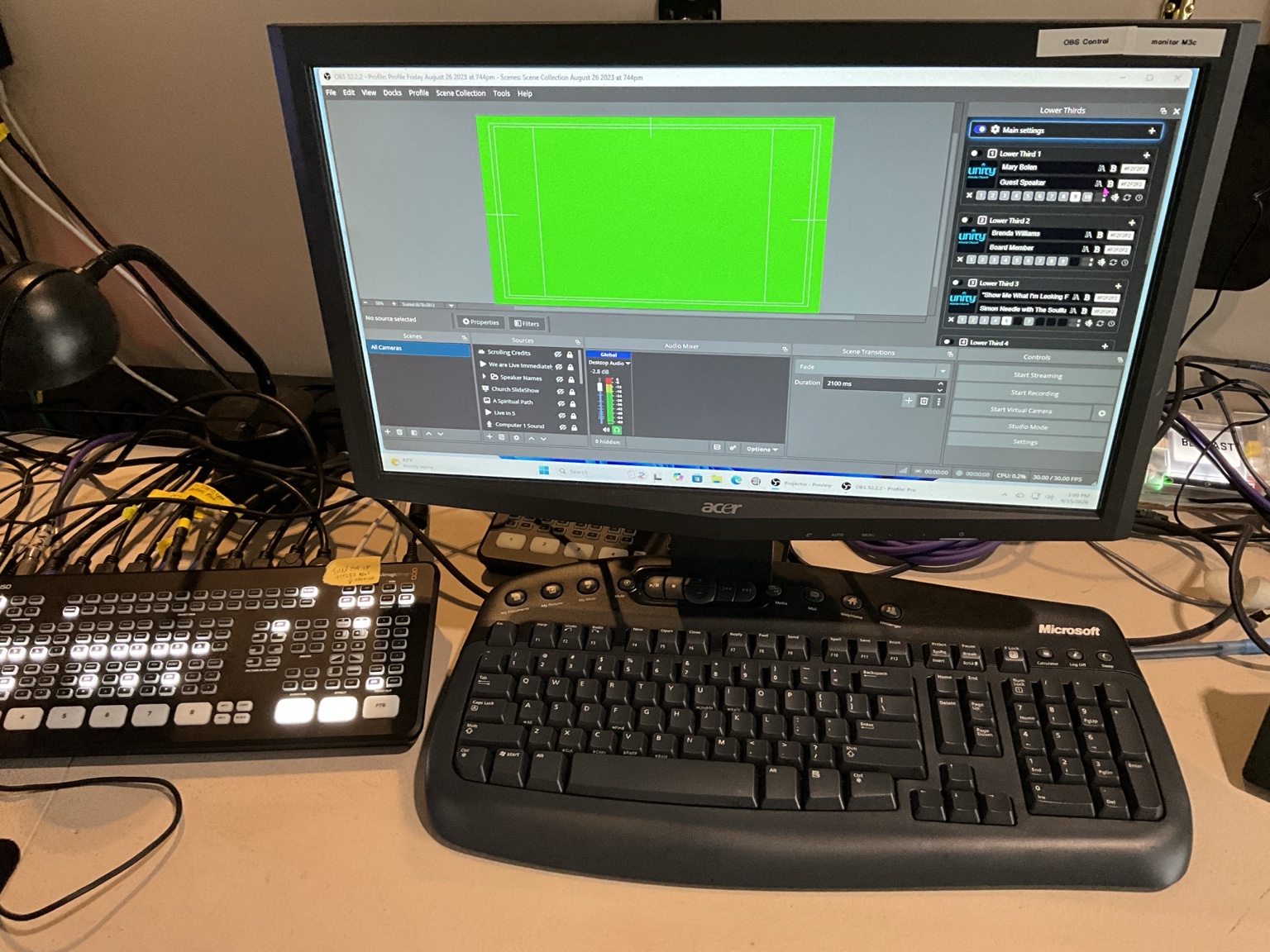

OBS control workstation

The OBS operator workstation.

After OBS opens:

Confirm the correct profile and scene collection.
Check for missing files.
Confirm that the program picture is present.
Confirm that Companion connects to OBS.
Test one known OBS command from Companion or Stream Deck.

Monitor arrangement¶

These functional labels were physically installed and officially adopted on August 12, 2026. Use the installed names below; former M3 labels are historical references only:

Camera Multiview — formerly M3a
Program View — formerly M3b
OBS Control — formerly M3c

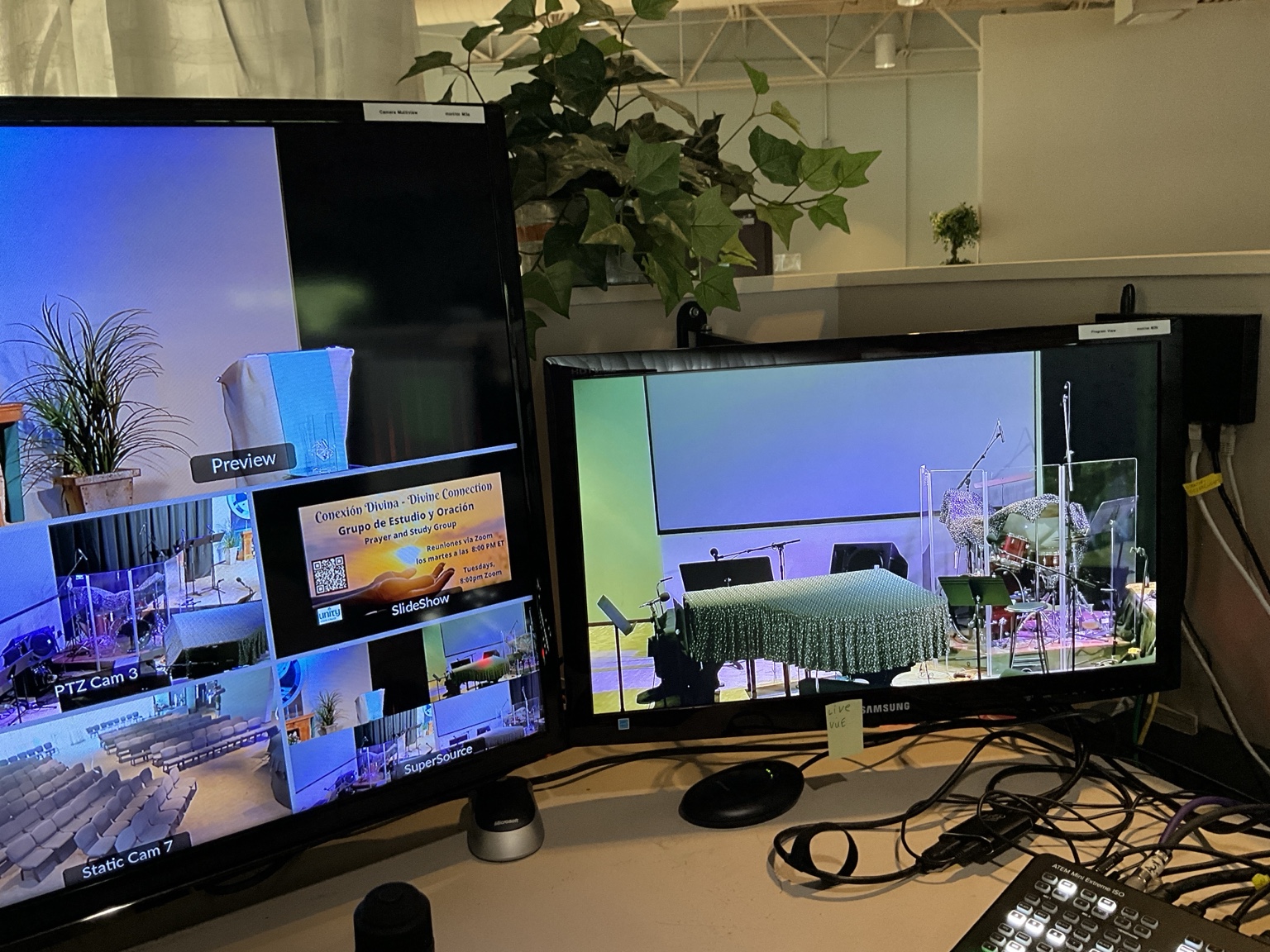

Program monitor and multiview

The Program View and Camera Multiview monitors used during production.
