1. Purpose and System Overview

The handbook explains not only which buttons to press, but what each system does and how the systems work together.

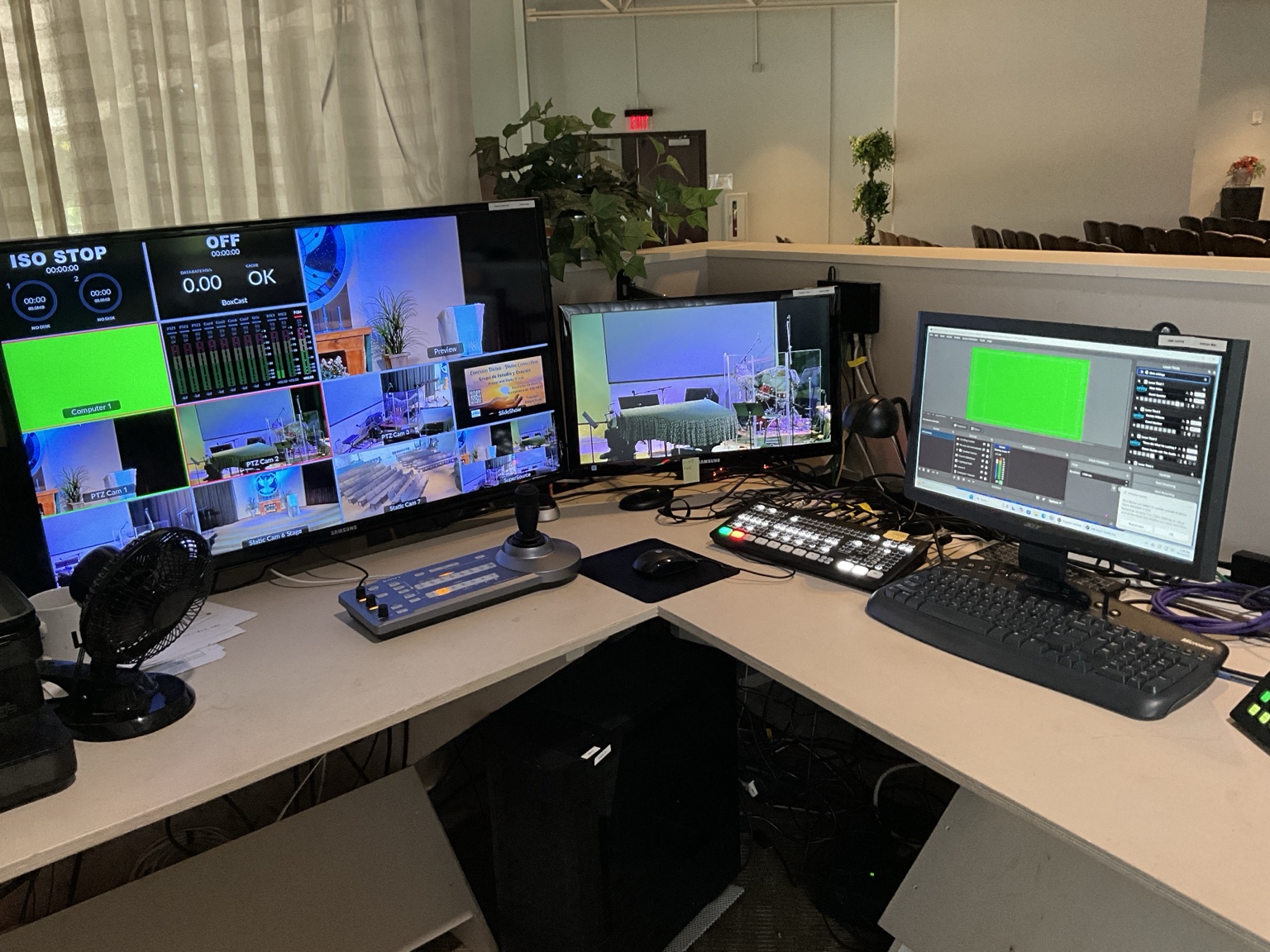

Video booth overview

The video-booth operating area, including the multiview, program monitor, OBS workstation, camera controls, and production equipment.

Simplified signal path

Cameras
   ↓
ATEM  ←  M32 broadcast audio
   ↓
OBS
   ↓
BoxCast
   ↓
Online viewers
  • Cameras provide video.
  • The M32 provides the broadcast audio mix.
  • The ATEM selects and combines video sources.
  • OBS adds graphics, lower thirds, effects, and layouts.
  • BoxCast distributes the service to online viewers.

This path is intentionally simplified. A detailed wiring diagram will be added after the booth connections have been photographed and verified.
